bed lift mechanism 1500mm white

Availability:
Quantity:
  • KEXIN

  • ZhengDing

  • ISO9001

  • Xingang, Tianjin

  • 200 Set/Sets

  • 3000 Set/Sets per Month

  • L/C,T/T

Do you want to use one finger to lift your bed?
Do you want all your possessions secure, that your mom can’t find it?
Kexin Bed Lift Mechanism can make your dream come true!

Product Name: Bed Lift Mechanism
Material: Iron (Q235)
Color: White, Black, Silver (option)
Finish: Powder Coating
Length: 620 mm, 900 mm, 1000 mm, 1200 mm, 1500 mm (option)
Thickness: 2-5 mm (angle iron)
Gas Pressure of each pump: 20-150 kg
Application: sofa bed, storage bed.
Option to open bed: Half , Side, Overlap, Double Duty.

Features:
1. Fashion and Multi-function.
2. Durable and have long life.
3. Effortless, Comfortable, Noiseless, Space Saving.
4. Suitable for single, double, queen and king size beds.
5. Can be customized from your samples, pictures or drawings.

Bed lift mechanism for under-mattress storage. Includes heavy-duty steel brackets, powder-coated black or white, along with screws for bed deck mounting, and gas pistons to hold the bed in a raised position.

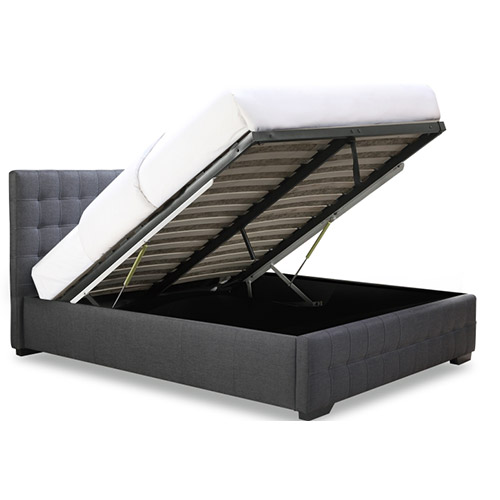

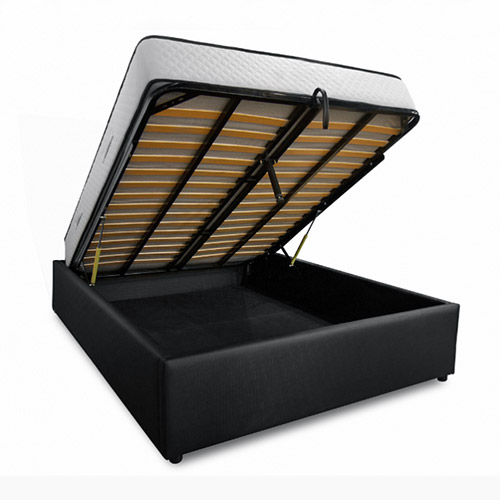

Overlap Overlap2

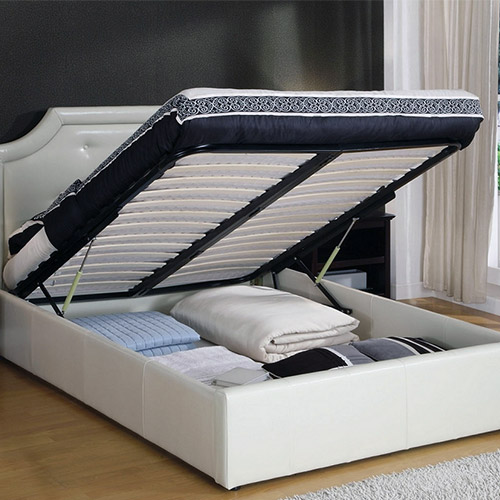

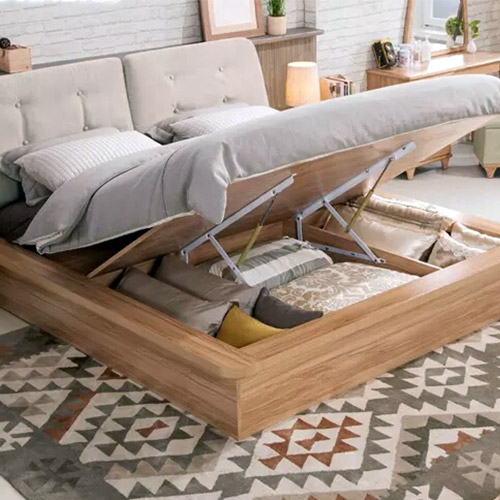

Half-Opening1 Overlap3

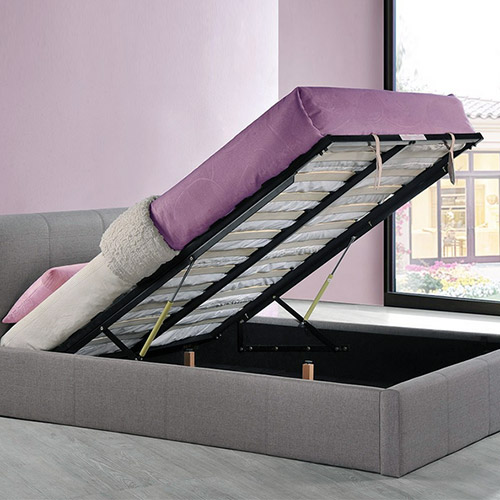

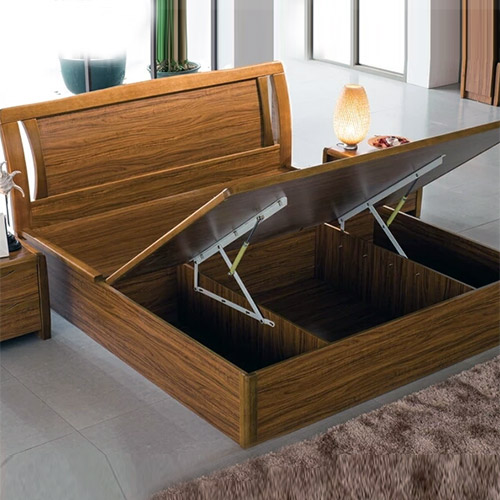

Half-Opening Overlap4

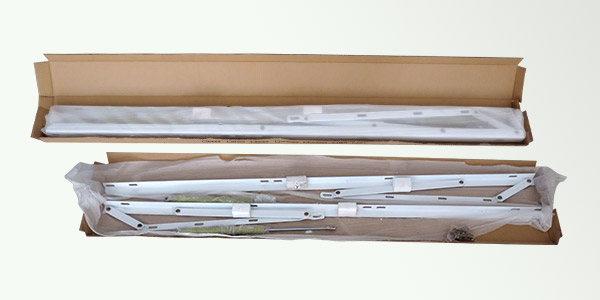

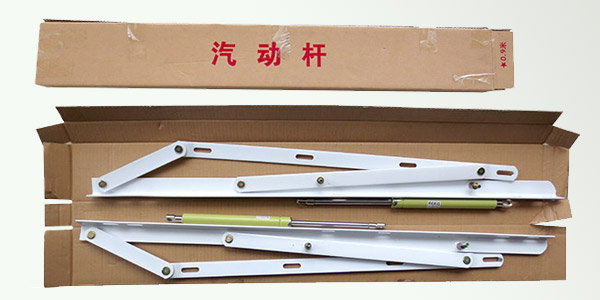

900-mm 900-mm4

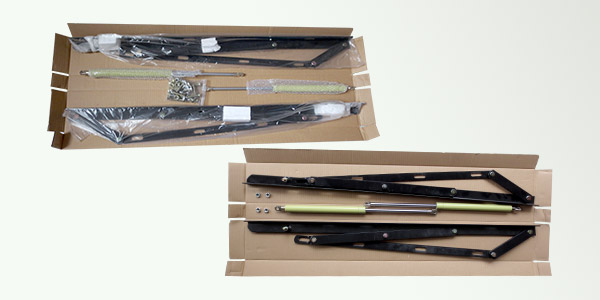

900mm1 900mm2


Size Package Dimension Gross Weight (thickness 3.0 mm) Volume (cbm)
620 mm 650*130*50 mm 3.5 kg 0.004
900 mm 915*130*50 mm 5.25 kg 0.006
1000 mm 1010*130*50 mm 5.5 kg 0.0066
1200 mm 1250*130*50 mm 5.8 kg 0.008
1500 mm 1530*130*50 mm 7.2 kg 0.01


CAD Drawings:

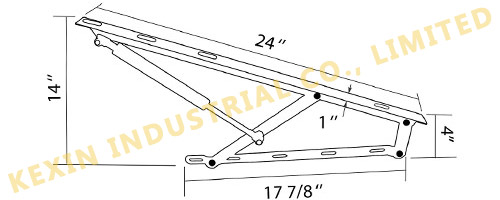

bed-lift-mechanism-620mm5
620  mm size
bed-lift-mechanism-900mm
900 mm size

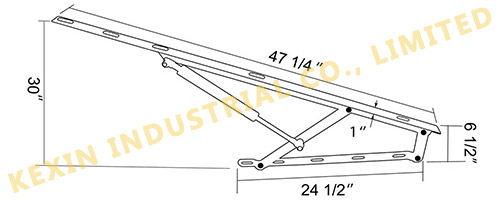

bed-lift-mechanism-1200mm
1200 mm size

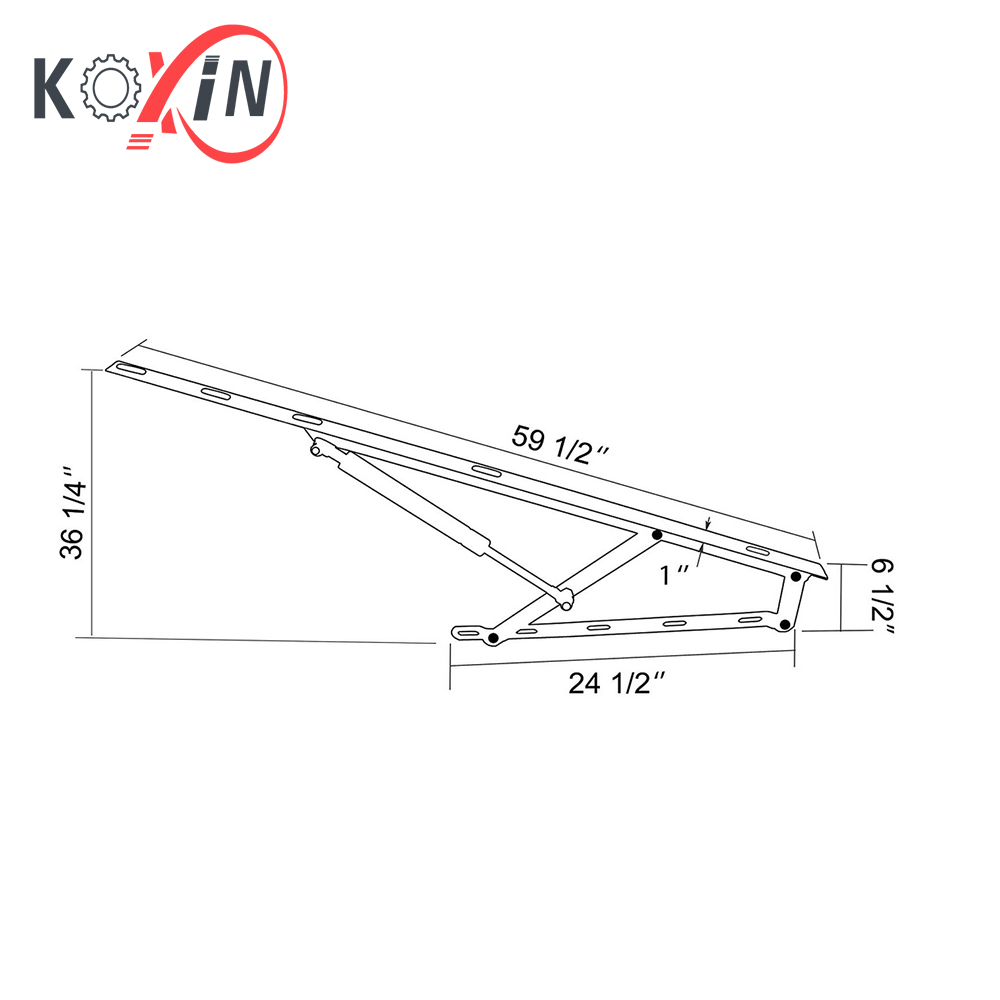

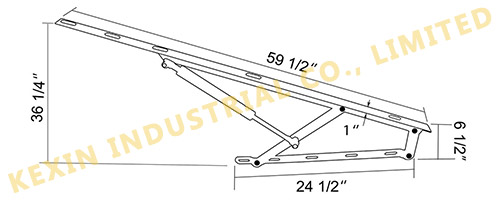

bed-lift-mechanism-1500mm
1500 mm size
