Bed Lift Mechanism Installation- Bed Installation

Views:4     Author:Site Editor     Publish Time: 2017-12-07      Origin:Site

The Installation Diagram of the Lift Mechanism Bed (1) Bed  Installation


Please open the package follow the installation steps, in order to avoid the plate mixing.

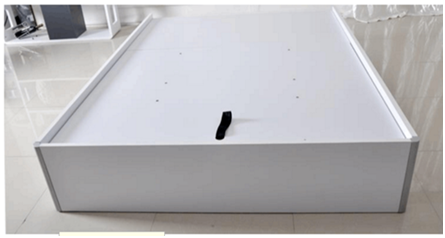

The installed mechanical bed with the lifters:

  Bed Lift Mechanism Installation.png

Please check the pack contents before assembling this mechanical bed. If any components are missing, please contact your retailer.

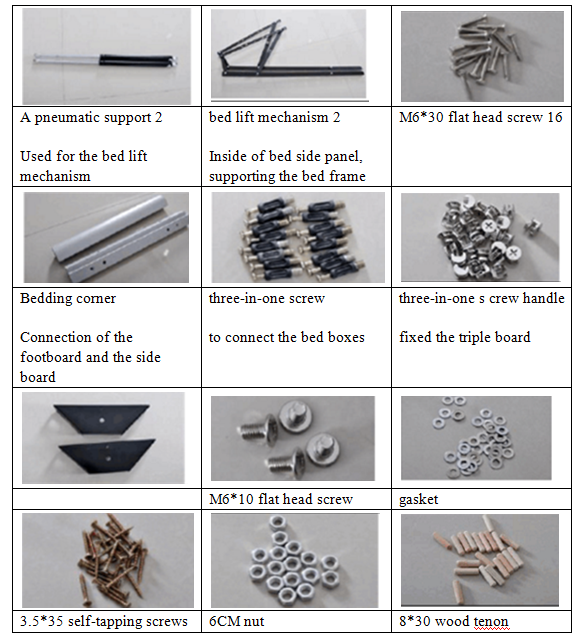

Parts and fittings checklist:

Parts and fittings checklis.png

Bed installation

Installation Steps:

Bed installation1.png

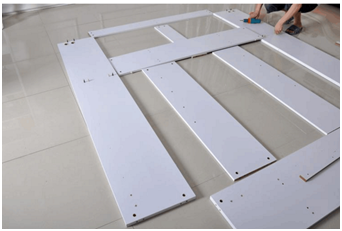

Place the triple-in-one screw and wood tenon on both left and right bed side plates.

Bed installation2.png

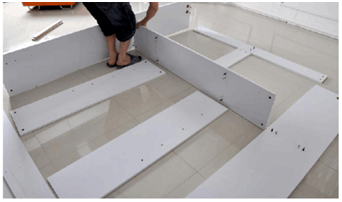

Fix the side panel to the long draw bar and the middle horizontal panel, locked it with the triple lock handle.

Bed installation3.png

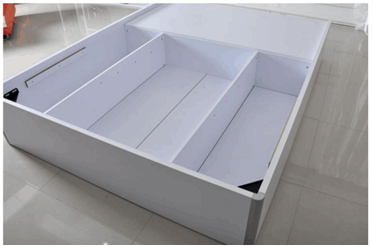

The finished bed board:

finished bed board.png

  to be continued
