Fixing Directions of Standard Mechanism

Views:5     Author:Site Editor     Publish Time: 2018-01-30      Origin:Site


left mechanism.png

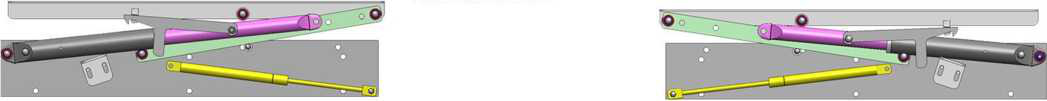

Left mechanism.                                                                                                     Right mechanism.

As the mechanism appears once you open the box;                                                      As the mechanism appears once you open the box;         free piston and lever, not fixed on the pins.                                                         free piston and lever, not fixed on the pins.

lift mechanism1.png            lift mechanism.jpg

Fig.1

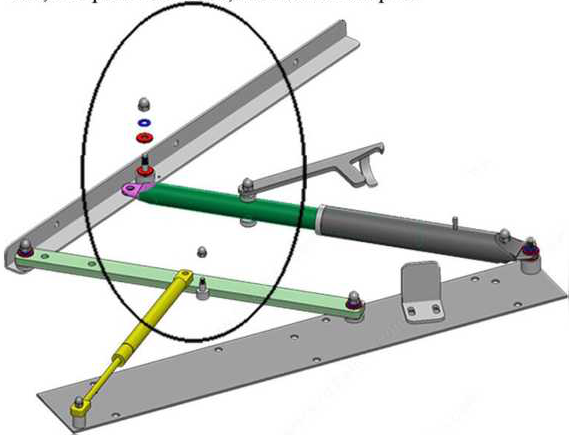

Open the mechanism as in fig. 1. Unscrew the blind nut “D”, take off the metal washers and only one Teflon washer.

Keep the other Teflon washers “R” on the pin.

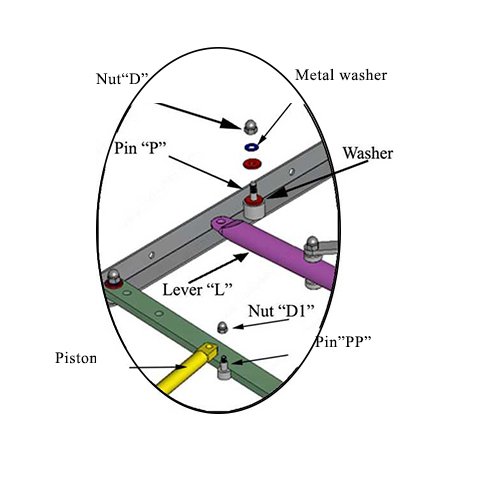

Fix the lever “L” on the pin “P”,insert again the Teflon washer, then the metal washers and screw on nut “D” until it’s locked. Unscrew nut “D1l”,fix the piston “PP” on the pin and lock it again with nut “D1”

lift mechanism3.png


Fig.2

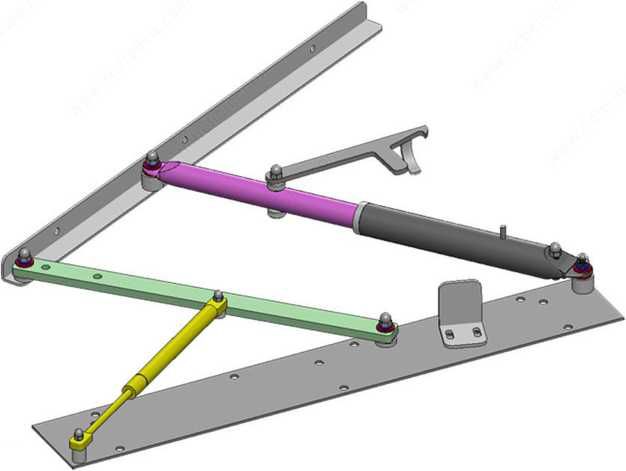

Once you have fixed everything it must look like fig. 2. Do the same operations also with the other mechanism.
